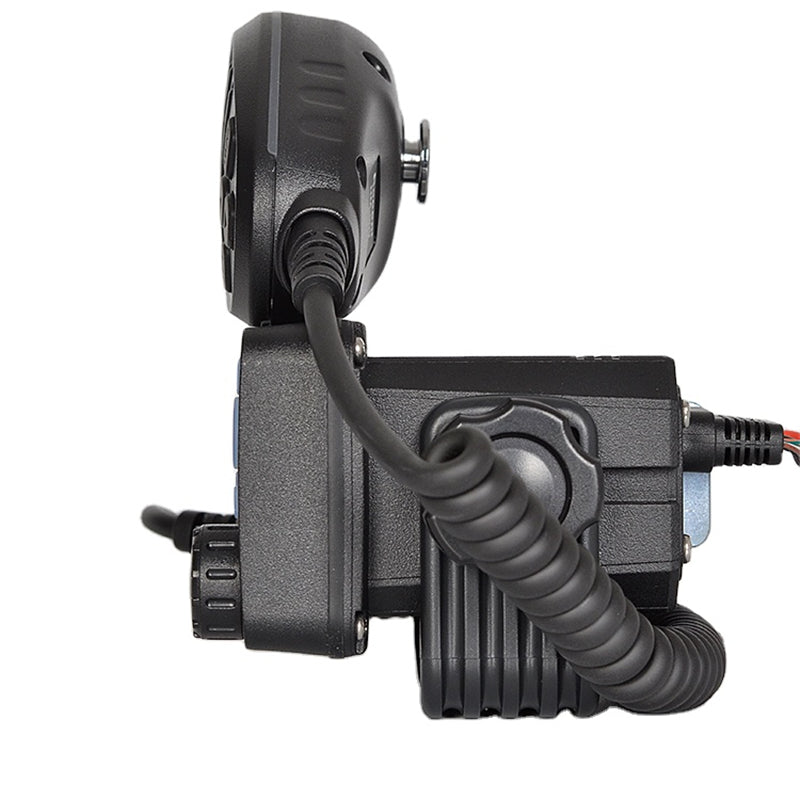

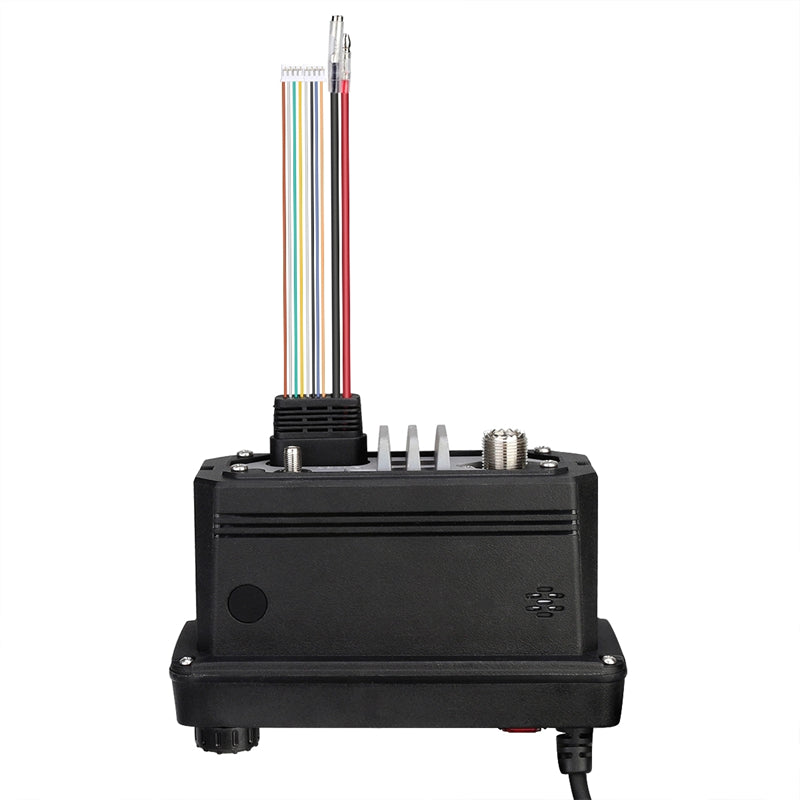

VHF Fixed Marine Radio RS-509MG - Class B

PRODUCT DESCRIPTION

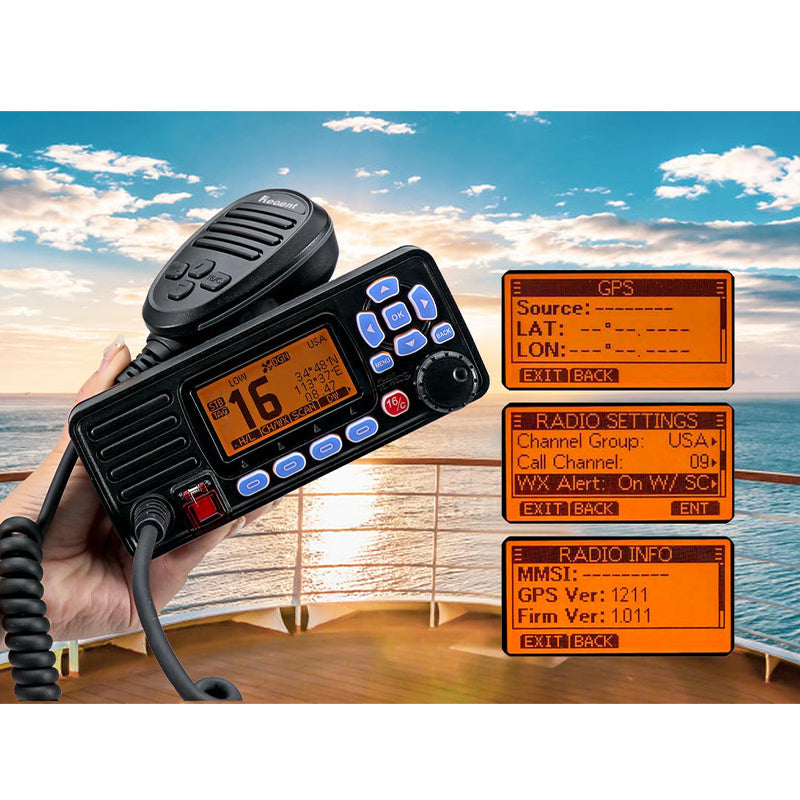

IPX7 Waterproof Construction (1m depth of water for 30 minutes), Full Dot Matrix Display

Dual Receiver, Independent DSC Dedicated Receiver, Dual-watch and Tri-watch Functions

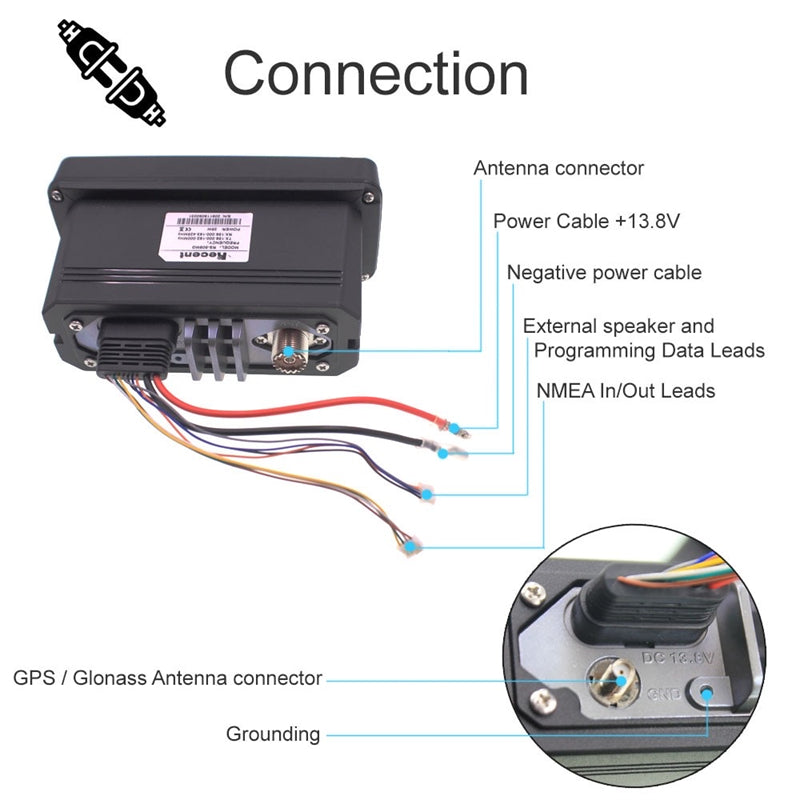

Manually Input GPS Latitude and Longitude and Time, Standard NMEA Interface (RS-422 Protocol)

Speaker Vibration Draining Function, Channel Number Display Digits Selectable
DSC Call Reception and Transmission Records Can be Queried, Weather Channel Alarm

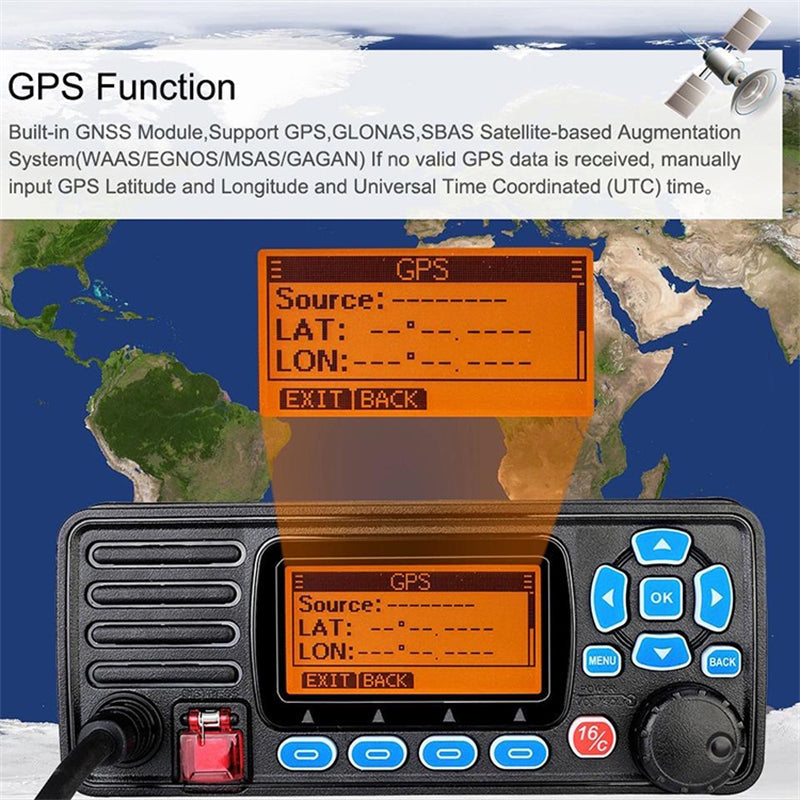

Built-in GNSS Module, Support GPS, GLONAS, SBAS Satellite-based Augmentation System

(WAAS/EGNOS/MSAS/GAGAN), Support Latest Marine Channel and DSC Protocol Standards.

Product size 155(W)¡Á68(H)¡Á86(D)

1. Frequency Range: TX£º156.000-162.000MHz RX£º156.000-163.425MHz;
2. RF Power: 25W/1W;
3. Channel Group: USA,INT,CAN;
4. Modulation Mode:16K0G3E(FM), 16K0G2B(DSC);
5. Power Supply: DC13.8V (¡À15%);
6. Frequency Stability: ¡À5 PPM;
